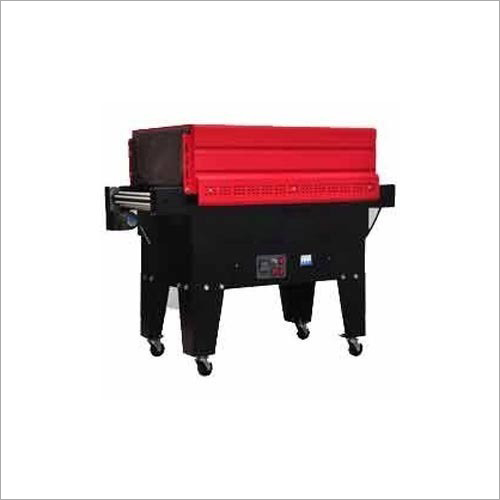

Automatic Shrink Tunnel Machine

Get a Price/Quote

Product Details:

Click to view more
Share Your Product:

Ask A Question Send Inquiry

Product Description

AUTOMATIC SHRINK TUNNEL MACHINE are one of the mostly demanded conveyor in different industrial sectors. We are considered a well established supplier in the market. It conveys light, medium and heavy loads that have flat bottoms like cartons, drums, cases etc. High quality material is used by our dependable vendors for their fabrication in different specifications. We assure serving our clients with a flawless range of AUTOMATIC SHRINK TUNNEL MACHINE as various quality inspections are conducted prior to dispatch. We offer this at highly pocket- friendly prices.

Product details

Conveyor Loading	10 kg
Voltage ( V/Hz)	220/50
Tunnel Size	300 x 200 mm
Speed	0 - 10 m/min
Power Consumption	4.5 kW
Net Weight	70 kg
Heating Time	10 minutes
Heating Furnace	900 X 300 X 50-200 mm
External dimensions	1200 X 500 X 800 mm
Cooling Time	15 minutes

Technical Specification

Model	SPS 4525	SPS 4535 L	SPS 6535 L
Tunnel Size (W x H) mm	450 x 250	450 x 350	650 x 350
Voltage (V/Hz)	220/50 -380 / 50	380/50	380/50
Power Consumption (KW)	6.5	9.6	12.5
Conveyor Loading (Kg)	10	30	30
Heating Furnace (l x w x h) mm	900 x 450 x 50-200*	1200 x 450 x 50-350*	1200 x 650 x 50-350*
External dimensions (lxwxh )(mm)	1200 x 650 x 1240	1200 x 650 x 1340	1200 x 850 x 1340
Speed (m/min.)	0~10	0~10	0~10
Heating Time (minutes)	10	10	10
Cooling Time (minutes)	15	15	15
Net Weight (Kg)	90	120	150
